Ti 6Al-4V ELI Titanium Alloy
(Ti6-4 ELI, Grade 23)
Ti-6Al-4V ELI Titanium Alloy (also known as Ti6-4 ELI and Grade 23) is the extra low interstitial variant of Ti6Al4V. It is one of the most widely used Titanium Alloys in the Bio-medical industry. It is certified to ASTM F136 and is commonly referred to as implant grade 6-+1 Titanium. The combination of low weight, durability and corrosion resistance make Ti6Al4V ELI the perfect meal for medical devices and implants.
The main difference between Ti6Al4V ELI (Grade 23) and Ti6Al4V (Grade 5) is that in ELI (Extra Low Interstitials) the maximum oxygen content is lowered to 0.13%. This gives the material an improved fracture toughness and fatigue strength.
Uses and applications:
Biomedical materials Surgical Clips
Orthopedic implants Cryogenic Vessels
Dental implants Aircraft
Bone and Joint replacement Structural components
Forms:

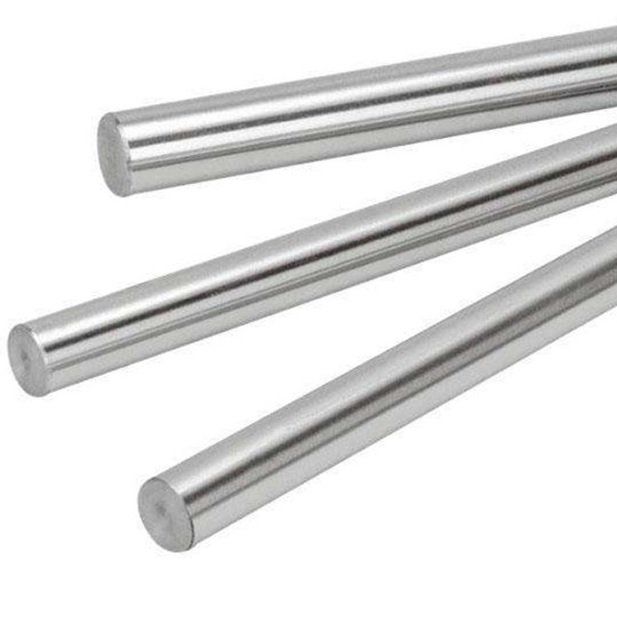

Round Bar Extrusion Sheet Strip
Flat Bar Billet Plate Wire
Rectangular Bar Ingot
Standard Specifications:
AMS 4907 AMS 4931 AMS 6932 ASTM F 136
AMS 4930 AMS 1956 ASTM B 348 MIL-T-9047
Composition:
Element Minimum Maximum
Carbon - 0.08%
Nitrogen - 0.05%
Hydrogen - 0.012%
Iron - 0.25%
Oxygen - 0.13%
Aluminum 5.5% 6.5%
Vanadium 3.5% 4.5%
Titanium 88.1% 91%
Properties:
Density 4.43 gm/cm3
Hardness (Knoop) 354
Electrical Resistivity 1.71 μOhm-m
Ultimate Tensile Strength 850 MPa
Modulus of Elasticity 113.8 GPa
