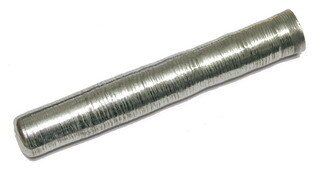

Tungsten Single Crystal

W

Application: Metal single crystals are required among others for basic research (surface physics, catalytic chemistry, investigation of material properties, etc.) and for monochromators (for X-ray, neutrons, etc.).

Tungsten is generally obtained as a dull grey powder, which is difficult to melt. The bulk metal is silvery-white, and resists attack by oxygen, acids and alkalis. Tungsten is used in alloys, to which it imparts great strength, in light bulb filaments and cutting tools.

Formula                                 W

Purity                                      99.999% pure

Production Method              Float Zone

Orientation                             (100), (111) or (110) (off orientations may also be available)

Orientation Tolerance           +/- 2 degree, +/- 1 degree, < 0.5 degree, < 0.1 degree

Surface Finish                        As cut, 1 side polished, both sides polished

Polishing Roughness            Ra < 0.3 microns, < 0.03 microns

Diameters available              8 mm to 12 mm

Thickness                                1.0 mm, 1.5 mm, 2.0 mm

Standard diameter, length and width tolerance: +/- 0.2 mm
